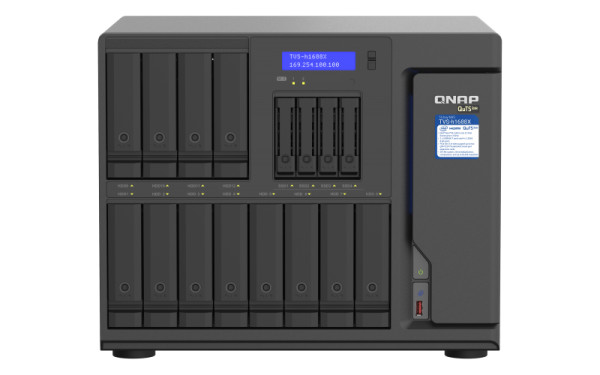

TVS-h1688X-W1250-32G
Codice: ART-153587 EAN: 4713213518403 MPN: TVS-h1688X-W1250-32G
QNAP NAS ACC - 2GB DDR3 RAM, 1333 MHz, SO-DIMM
Scheda Tecnica
Scheda Tecnica
| CPU | Intel® Xeon® W-1250 6-core 3.3 GHz processor (boost up to 4.7 GHz) |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics P630 |
| Floating Point Unit |
|
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding |
|
| System Memory | 32GB ECC UDIMM DDR4 (2 x 16 GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot |
4 x Long-DIMM DDR4
For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
|
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay |
12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
|
| Drive Compatibility |
3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives |
| Hot-swappable |
|
| M.2 SSD Slot | 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots |
| SSD Cache Acceleration Support |
|
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 4 |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via an adapter |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/1G) |
| Wake on LAN (WOL) |
Only the 2.5GbE port
|
| 25 Gigabit Ethernet Port | Optional via an adapter |
| Jumbo Frame |
|
| Thunderbolt Port | Optional via the QXP-T32P 2-port Thunderbolt 3 PCIe adapter |
| PCIe Slot |
3 Slot 1: PCIe Gen3 x8 Slot 2: PCIe Gen3 x4 Slot 3: PCIe Gen3 x4 *Slot 1 is preinstalled with a 2-port 10GbE network adapter.
|
| USB 3.2 Gen 2 (10Gbps) Port |
2 x Type-C 4 x Type-A |
| HDMI Output | 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz) |
| Audio Input | 1 x 3.5 mm dynamic microphone jacks |
| Audio Output |
1
x built-in speaker, 1 x 3.5mm line out jack (for amplifiers or
speakers)
You cannot use the speakers and the line-out jack simultaneously.
|
| Form Factor | Tower |
| LED Indicators | System status, LAN, USB, Disk 1~16, M.2 SSD 1~2 |
| LCD Display/ Button |
|
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 303.84 × 369.89 × 319.8 mm |
| Weight (Net) | 13.41 kg |
| Weight (Gross) | 16.3 kg |
| Operating temperature | 0 - 40°C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 550W PSU, 100~240V |
| Power Consumption: HDD Sleep Mode | 91.26 W |
| Power Consumption: Operating Mode, Typical |
108.67 W
Tested with drives fully populated.
|
| Fan |
System fan: 3 x 97mm, 12VDC CPU fan: 2 x 90mm, 12VDC |
| Sound Level | 25.8 db(A) |
| System Warning | Buzzer |
| Kensington Security Slot |
|
| Max. Number of Concurrent Connections (CIFS) | 9000 |
