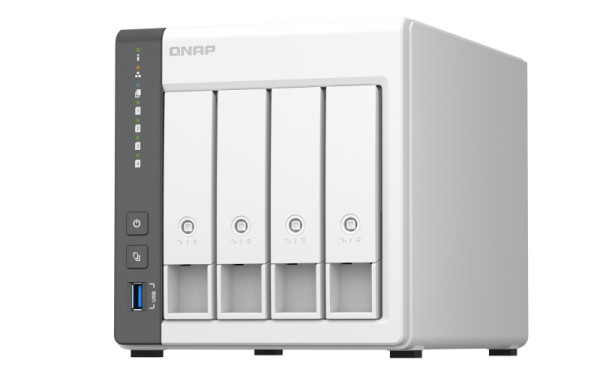

TS-433-4G
Codice: ART-181682 EAN: 4711103080993 MPN: TS-433-4G
QNAP 4-bay ARM 4C 2.0GHz ; 4 x SATA 6Gb/s 3.5"/2.5"; 4GB RAM on-board; 1 x GbE; 1 x 2.5GbE ; 1 x USB3.2 Gen1 and 2 x USB2.0
Presentazione del prodotto
TS-433-4G: NAS a quattro bay progettato per cloud personale e lavoro condiviso.
Accesso ai file
Le applicazioni QNAP semplificano organizzazione, backup e sincronizzazione fra dispositivi.
Rete più rapida
Una porta 2,5GbE favorisce la collaborazione e i trasferimenti quotidiani.
Backup e protezione
Le applicazioni QNAP per backup, sincronizzazione e gestione degli accessi aiutano a proteggere documenti e cartelle condivise. Le funzioni disponibili dipendono dal sistema operativo e dalla configurazione adottata.
Gestione dei file e collaborazione
Centralizzare documenti, progetti e copie di sicurezza semplifica l'accesso condiviso alle informazioni. Le opzioni di espansione e le applicazioni utilizzabili variano in base al modello.
- CPU: ARM 4-core Cortex-A55 2.0GHz processor
- CPU Architecture: 64-bit ARM
- Graphic Processors: Mali-G52
- Encryption Engine: Yes
- Hardware-accelerated Transcoding: Yes
- Neural Processing Unit (NPU): Yes
- System Memory: 4 GB on board (non-expandable); Note: Reserves some RAM for use as shared graphics memory.
- Maximum Memory: 4 GB on board (non-expandable)
- Flash Memory: 4 GB (Dual boot OS protection)
- Drive Bay: 4x 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive Compatibility: 3.5-inch bays: 3.5-inch SATA hard disk drives; 2.5-inch SATA solid state drives
- Hot-swappable: Yes
- Gigabit Ethernet Port (RJ45): 1
- 2.5 Gigabit Ethernet Port (2.5G/1G/100M): 1 (2.5G/1G/100M)
- Wake on LAN (WOL): Yes
- Jumbo Frame: Yes
- USB 2.0 port: 2
- USB 3.2 Gen 1 port: 1
- Form Factor: Tower
- LED Indicators: System Status, LAN, USB, HDD1~4
- Buttons: Power, Reset, USB Copy
- Dimensions (HxWxD): 165 × 160.2 × 220.5 mm; Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model).
- Weight (Net): 2.07 kg
- Weight (Gross): 3.39 kg
- Operating Temperature: 0 - 40 °C (32°F - 104°F)
- Storage Temperature: -20 - 70°C (-4°F - 158°F)
- Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
- Power Supply Unit: Minimum 65W adapter (12VDC), 100-240VAC
- Power Consumption: Disk Standby Mode: 8.45 W
- Power Consumption: Operating Mode, Typical: 22.54 W; Tested with drives fully populated.
- Fan: 1 x 120mm, 12VDC
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Standard Warranty: 2 years
- Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 200
- Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
- Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
