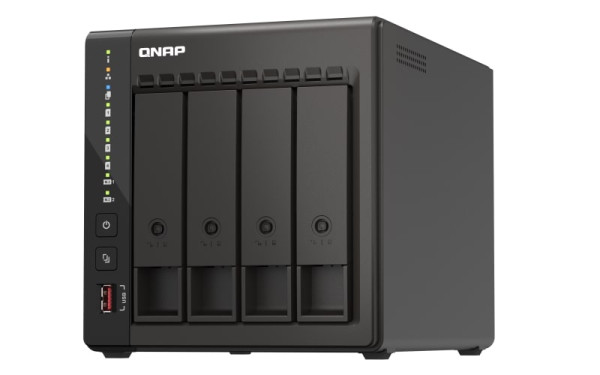

TS-453E-8G
Codice: ART-181410 EAN: 4711103082164 MPN: TS-453E-8G
QNAP 4-bay desktop NAS, Intel Celeron J6412 4C 2.0GHz, burst 2.6GHz, onboard 8GB RAM, 2 x HDMI 1.4b, 2x M.2 2280 PCIe slots, 2x 2.5GbE, 2x USB 3.2 Gen2 Type A, 2x USB 2.0, long term supply up to 2029
Presentazione del prodotto
TS-453E-8G: NAS a quattro bay con supporto a lungo terminè destinato a piccole imprese e sorveglianza.
Storage e videosorveglianza
Le porte 2,5GbE, gli slot M.2 NVMe e due uscite HDMI permettono diversi scenari di utilizzo.
Elaborazione
La CPU Intel quad-core e 8 GB di RAM supportano servizi di file, backup e applicazioni di rete.
Backup e protezione
Le applicazioni QNAP per backup, sincronizzazione e gestione degli accessi aiutano a proteggere documenti e cartelle condivise. Le funzioni disponibili dipendono dal sistema operativo e dalla configurazione adottata.
Gestione dei file e collaborazione
Centralizzare documenti, progetti e copie di sicurezza semplifica l'accesso condiviso alle informazioni. Le opzioni di espansione e le applicazioni utilizzabili variano in base al modello.
- CPU: Intel® Celeron® J6412 4-core/4-thread processor, burst up to 2.6 GHz
- CPU Architecture: 64-bit x86
- Graphic Processors: Intel® UHD Graphics
- Floating Point Unit: Yes
- Encryption Engine: Yes (AES-NI)
- Hardware-accelerated Transcoding: Yes
- System Memory: 8 GB SODIMM DDR4; Since 2024/01
- Maximum Memory: 16 GB (2 x 8GB)
- Memory Slot: 2 x SODIMM DDR4
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 4 x 3.5-inch SATA 6Gb/s; The system is shipped without HDD. Refer to QNAP HDD compatibility list.
- Drive Compatibility: 3.5-inch SATA hard disk drives; 2.5-inch SATA solid state drives
- Hot-swappable: Yes (Not supported M.2 SSD)
- M.2 Slot: 2 x M.2 2280 PCIe Gen 3 x2; Compatible with NVMe SSD PCIe Gen 3 and above. Refer to QNAP compatibility list.
- SSD Cache Acceleration Support: Yes
- 2.5 Gigabit Ethernet Port (2.5G/1G/100M): 2 (2.5G/1G/100M/10M)
- Wake on LAN (WOL): Yes
- Jumbo Frame: Yes
- USB 2.0 port: 2
- USB 3.2 Gen 2 (10Gbps) Port: 2 x Type-A
- HDMI™ Output: 2 x HDMI™ 1.4b (up to 3840 x 2160 @ 30Hz)
- Form Factor: Tower
- LED Indicators: Power/Status, LAN, USB, HDD1-4
- Buttons: Power, Reset, USB Auto Copy
- Dimensions (HxWxD): 165 × 160.2 × 220.5 mm; Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model).
- Weight (Net): 3.5 kg
- Weight (Gross): 3.5 kg
- Operating Temperature: 0 - 40 °C (32°F - 104°F)
- Storage Temperature: -20 - 70°C (-4°F - 158°F)
- Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
- Power Supply Unit: 90W adapter, 100-240V
- Power Consumption: Disk Standby Mode: 28.974 W
- Power Consumption: Operating Mode, Typical: 35.79 W
- Fan: 1 x 120mm, 12VDC
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Standard Warranty: 3 years
- Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 1500
- Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
- Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
