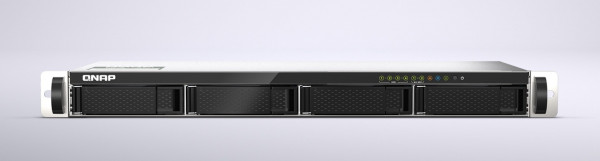

TS-435XeU-4G
Codice: ART-178698 EAN: 4713213519332 MPN: TS-435XeU-4G
QNAP 4-bay 1U short-depth 12" NAS, Marvell Octeon TX2 CN9130 / CN9131 64-bit quad-core 2.2 GHz, 4GB DDR4 SODIMM RAM (1 slot, up to 32GB), 4 x 2.5"/3.5" SATA 6Gbps HDD bay, 2 x M.2 2280 NVMe PCIe Gen3 x1 SSD slots, 2 x 10GbE SFP+, 2 x 2.5GbE, USB 3.2 Gen1 + USB 2.0 ports
Presentazione del prodotto
TS-435XeU-4G: NAS rack a profondità ridotta con processore quad-core per uffici e strutture IT compatte.
Porte ad alta velocità
Connettività 10GbE SFP+ e 2,5GbE per condividere e proteggere rapidamente file di lavoro.
SSD per applicazioni
Gli slot M.2 NVMe consentono l'uso della cache SSD in configurazioni compatibili.
Backup e protezione
Le applicazioni QNAP per backup, sincronizzazione e gestione degli accessi aiutano a proteggere documenti e cartelle condivise. Le funzioni disponibili dipendono dal sistema operativo e dalla configurazione adottata.
Gestione dei file e collaborazione
Centralizzare documenti, progetti e copie di sicurezza semplifica l'accesso condiviso alle informazioni. Le opzioni di espansione e le applicazioni utilizzabili variano in base al modello.
- CPU: Marvell OCTEON TX2™ CN9130 / CN9131 ARMv8 Cortex-A72 4-core 2.2GHz processor
- CPU Architecture: 64-bit ARM
- Floating Point Unit: Yes
- Encryption Engine: Yes
- System Memory: 4 GB SODIMM DDR4
- Maximum Memory: 32 GB (1 x 32 GB)
- Memory Slot: 1 x SODIMM DDR4; QTS Firmware version 5.0.1(0426) and later will support ECC.
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive Compatibility: 3.5-inch bays: 3.5-inch SATA hard disk drives; 2.5-inch SATA solid state drives
- Hot-swappable: Yes (Not supported M.2 SSD)
- M.2 Slot: 2 x M.2 2280 PCIe Gen 3 x1 slots; Compatible with NVMe SSD PCIe Gen 3 and above. Refer to QNAP compatibility list.
- SSD Cache Acceleration Support: Yes
- 2.5 Gigabit Ethernet Port (2.5G/1G/100M): 2 (2.5G/1G/100M)
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+
- Wake on LAN (WOL): Yes
- Jumbo Frame: Yes
- USB 2.0 port: 2
- USB 3.2 Gen 1 port: 2
- Form Factor: 1U Short Depth Rackmount
- LED Indicators: HDD 1-4, Status, LAN, USB, M.2 SSD 1-2
- Buttons: Power, Reset
- Dimensions (HxWxD): 43.3 × 430 × 292.12 mm; Excludes ear hook and protruding part of the Power Supply Unit.
- Weight (Net): 4.91 kg
- Weight (Gross): 5.82 kg
- Operating Temperature: 0 - 40 °C (32°F - 104°F)
- Storage Temperature: -20 - 70°C (-4°F - 158°F)
- Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
- Power Supply Unit: 100W PSU, 100-240V
- Power Consumption: Disk Standby Mode: 17.367 W
- Power Consumption: Operating Mode, Typical: 30.878 W
- Fan: 3 x 40mm, 12VDC
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Standard Warranty: 3 years
- Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 1500
- Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
- Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
