Ubiquiti - UACC-Lock-Strike-Safe-8mm - Serratura elettrica con chiusura di sicurezza e supporto per incontri di 8 mm di profondità.
Codice: ART-229247 EAN: 85176200 MPN: UACC-Lock-Strike-Safe-8mm
CONTENUTO DELLA CONFEZIONE
Scheda Tecnica
Scheda Tecnica
Overview

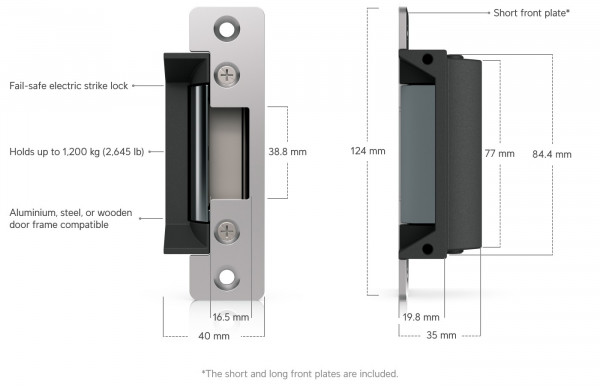

Dimensions
Lock body:112 x 21 x 28 mm (4.4 x 0.8 x 1.1")
Short front plate:153 x 25 x 3 mm (6 x 0.9 x 0.1")
Long front plate:250 x 25 x 3 mm (9.8 x 0.9 x 0.1")
Weight
Lock body: 200 g (7.0 oz)
Short front plate: 62 g (2.2 oz)
Long front plate: 97 g (3.4 oz)
Enclosure Material
Lock body: zinc alloy
Front plate/latches: stainless steel
Lock Features
Lock Type
Fail safe
Support Door Type
Single door (Wooden/metal)
Holding Force
227 kg (500 lb)
Current Power
200mA ± 10%
Support Voltage Range
12V DC ±10%
Wiring
(1) Lock 12V/NC (red)
(1) Lock 12V/COM (black)
(1) DPS/- (white)
(1) DPS/+ (orange)
Mounting
Door frame recess mount
Door Status Contact
Type
Dry contact
Logic
Door Open: DPS/+ & DPS/- = Open
Door Close: DPS/+ & DPS/- = Short
Rating
Max. 30V DC, 0.1A
Ambient Storage Temperature
-20 to 70° C (-4 to 158° F)
Ambient Operating Temperature
-10 to 60° C (14 to 140° F)
Ambient Operating Humidity
5 to 90% noncondensing
NDAA Compliant
Yes
Certifications
FCC, IC, CE
