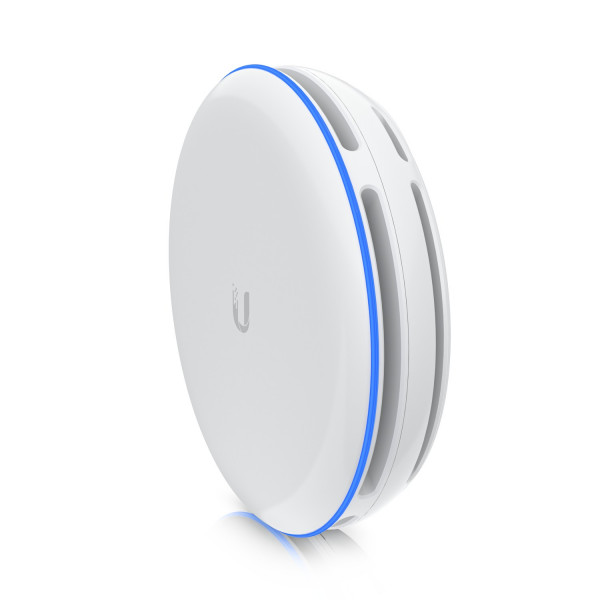

Ubiquiti - UBB-XG-Single-EU - Ponte wireless punto-punto a 60 GHz con uplink SFP+ da 10 Gbps per prestazioni ottimali e radio di backup a 5 GHz. Confezione Singola
Codice: ART-229210 EAN: 85176200 MPN: UBB-XG-Single-EU
CONTENUTO DELLA CONFEZIONE
Scheda Tecnica
Scheda Tecnica
Overview
Dimensions
⌀191.8 x 59 mm
(⌀7.6 x 2.3")
WiFi Standard
WiFi 5
Spatial Streams
2
Coverage Area
500 m (1,640 ft)
Mounting Locations
Wall, pole
Weatherproofing
IPX6
Power Method
PoE++
Passive PoE
Performance
MIMO
5 GHz
2 x 2 (DL MU-MIMO)
Max. Data Rate
60 GHz
6 Gbps
5 GHz
866.6 Mbps (BW80)
Antenna Gain
60 GHz
21 dBi
5 GHz
14 dBi
2.4 GHz
2 dBi (BLE)
Max. TX Power
60 GHz
16 dBm
5 GHz
23 dBm
Supported Data Rates
802.11ac (WiFi 5)
6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security
WPA2 AES
Hardware
Max. Power Consumption
29W
Includes PoE Adapter
Yes
Supported Voltage Range
48V DC ± 10%
Networking Interface
(1) GbE RJ45 port
(1) 1/10G SFP+ port
Weight
Device: 1.7 kg (3.8 lb)
With mount: 2.9 kg (6.3 lb)
Operating Modes
PtP
Wind Loading
56 N at 200 km/h (12.6 lbf at 125 mph)
Pole Mount Diameter
1–2.5" (25–63.5 mm)
Management
Ethernet
Bluetooth
Channel Bandwidth
Main radio (60 GHz): 1,080/2,160 MHz
Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz
Enclosure Material
Aluminum alloy, UV-resistant polycarbonate
Mount Material
Stainless steel
Button
(1) Factory reset
LEDs
System
R/G/B
Operating Frequency
Main radio (60 GHz): 57 - 66 GHz
Backup radio (5 GHz):
US/CA
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
Worldwide
5150 - 5850 MHz
Bluetooth (MHz)
Worldwide: 2400 - 2483.5 MHz
Ambient Operating Temperature
-40 to 55° C (-40 to 131° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
Certifications
CE, FCC, IC, Terragraph
